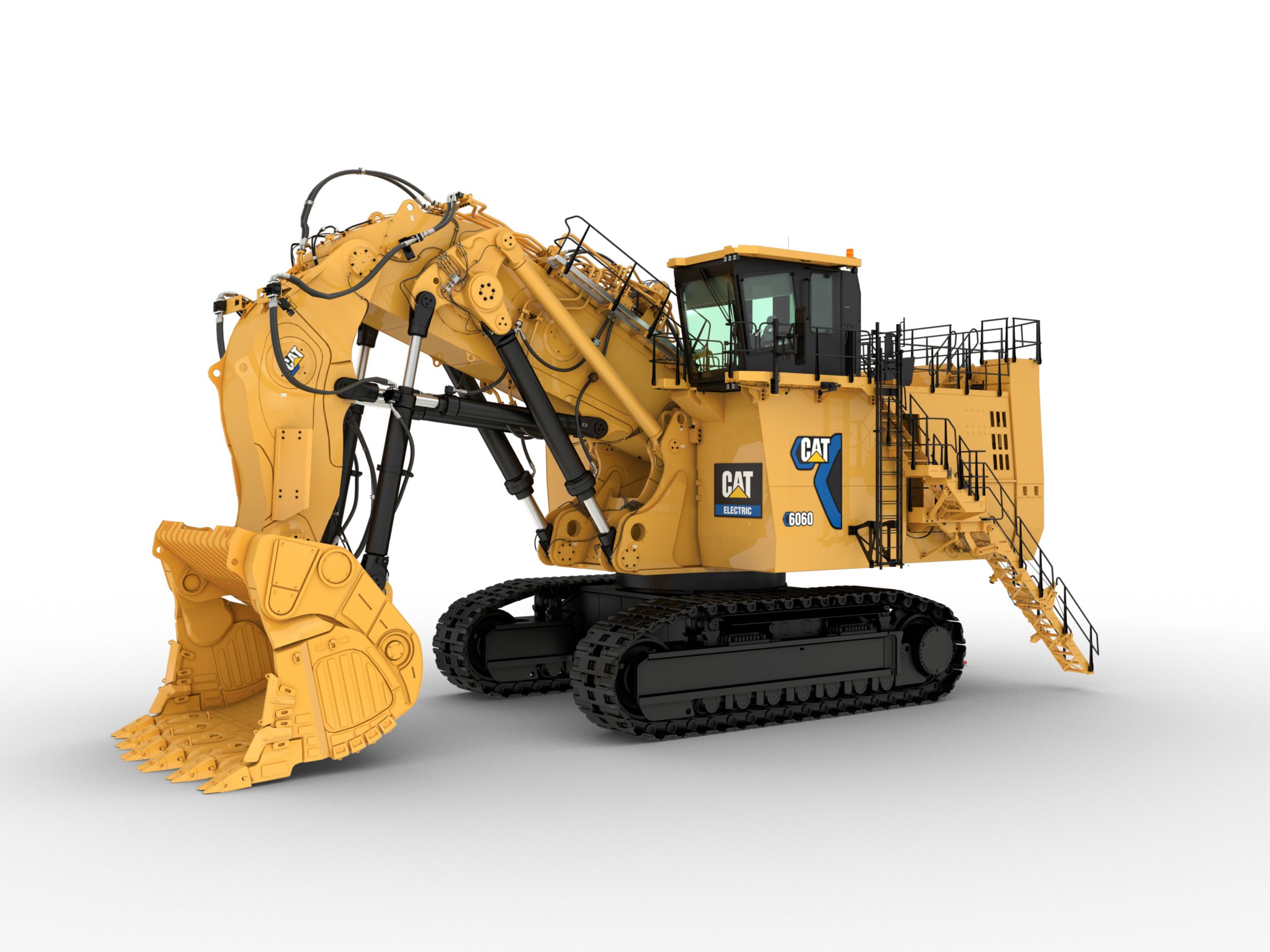

6060 Electric
6060 Electric Customer Testimonial
Exchangeable Power Module
Contact Us For Price
SPECS SUMMARY
| Type | 2 × Squirrel cage induction motor |
| Output (nominal rated) | 2 x 1000 kW |
| Voltage | 6.0 / 6.6 / 7.2 V |
| Rated Current IN | 6.0 kV / 235 A |
With its rated backhoe payload of 65 tonnes (71) tons and face shovel payload of 61 tonnes (67 tons), the 6060 was among the first shovels in the mining industry tailor-made for mines using 240-ton (218-tonne) haul trucks, providing an efficient 4-pass solution to meet production capacity in these environments.
Specifications
| Type | 2 × Squirrel cage induction motor |
| Output (nominal rated) | 2 x 1000 kW |
| Voltage | 6.0 / 6.6 / 7.2 V |
| Rated Current IN | 6.0 kV / 235 A |
| Frequency | 50 Hz / 60 Hz |
| Speed | 1,500 min-1/50Hz |
| Maximum Starting Current | 6.0 kV / 480 A |
| Control System Voltage | 24 V (24 V) |
| Batteries in Series Installation | 2 × 210 Ah – 12 V each |
| Cab Heating Voltage | 230 V (230 V) |
| Power Take Off | 1 × single phase (10 A, 230 V, 2.23 kW) 1 × three phase (4 A, 400 V, 2.8 kW) |
| Note | Operating weights include: base machine, front attachment, standard track pads, standard rock bucket, 100% fuel and lubricants. |
| Standard Track Pads – Face Shovel | 55 in (1400 mm) |
| Operating Weight – Face Shovel | 1278430 lb (580000 kg) |
| Ground Pressure – Face Shovel | 37.3 psi (25.7 N/cm²) |
| Payload – Face Shovel | 134482 lb (61000 lb) |
| Standard Track Pads – Backhoe | 55 in (1400 mm) |
| Operating Weight – Backhoe | 1278430 lb (581700 kg) |
| Ground Pressure – Backhoe | 37.4 psi (25.8 N/cm²) |
| Payload – Backhoe | 143300 lb (65000 kg) |
| Hydraulic Tank | 1876 gal (US) (7100 l) |
| Hydraulic System - Including Tank | 2483 gal (US) (9400 l) |
| Pump Transmission Gearbox including Cooling Circuit | 2 x 103 L (2 x 27.2 gal) |
| Pump Pre-Chambers at Pump Transmission Gearbox | 2 x 14 L (2 x 3.7 gal) |
| Swing Drive | 4 x 38 L (4 x 10.0 gal) |
| Travel Gearbox Planetary | 2 x 120 L (2 x 31.7 gal) |
| Travel Gearbox Spur Gear | 2 x 19 L (2 x 5.0 gal) |
| Travel Gearbox Brake Chambers | 4 x 0.5 L (2 x 0.13 gal) |
| Grease Tank | 710 L (188 gal) |
| Main Pumps | 8 variable flow axial piston pumps |
| Main Pumps - Maximum Total Oil Flow | 8 x 650 L/min (8 x 172 gal/min) |
| Main Pumps - Maximum Pressure - Attachment | 4640 psi (320 bar) |
| Main Pumps - Maximum Pressure - Travel | 5220 psi (360 bar) |
| Swing Pump | 4 reversible swash plate pumps |
| Swing Pump - Maximum Flow - Swing | 4 x 352 bar (4 x 93 psi) |
| Swing Pump - Maximum Pressure - Swing | 5076 psi (350 bar) |
| Oil Flow of Cooling Pumps | 4 x 488 L/min (4 x 129 gal/min) |
| Components | 4 cooling fans |
| Diameter - Fan | 46 in (1170 mm) |
| Features (2) | Fan speed and flow of oil to the coolers are thermostatically controlled |
| Features (1) | Cooling system fully independent of all main circuits, i.e. controlled cooling capacity is available whenever engine is running |
| Swing Drive | 4 compact planetary transmissions with axial piston motors |
| Parking Brakes | Wet multiple-disc brake, spring-loaded/hydraulically released |
| Maximum Swing Speed | 3.8 r/min (3.8 r/min) |
| Swing Ring | Triple-race roller bearing with sealed internal gearing |
| Travel Speed - 1st Stage - Maximum | 0.68 mile/h (1.1 km/h) |
| Travel Speed - 2nd Stage - Maximum | 0.99 mile/h (1.6 km/h) |
| Maximum Tractive Force | 661160 lb (2942 kN) |
| Gradeability - Travel Drives - Maximum | 38.8 % (38.8 %) |
| Features (1) | Closed-loop swing circuit with torque control |
| Track Pads - Each Side | 42 |
| Bottom Rollers - Each Side | 7 |
| Support Rollers - Each Side | 2 plus a skid plate in between |
| Travel Drives - Each Side | 1 planetary transmission with 2 two-stage axial piston motors |
| Operator's Eye Level - Approximately | 24.91 ft (7.6 m) |
| Parking Brake | Wet multiple disc brake, spring loaded/hydraulically released |
| Internal Dimensions of Cab - Length | 7.33 ft (2230 mm) |
| Internal Dimensions of Cab - Width | 5.33 ft (1625 mm) |
| Internal Dimensions of Cab - Height | 6.75 ft (2070 mm) |
| Components (5) | Operator Protective Guard (Top Guard) (ISO 10262:1998 Level II) |
| Maximum Digging Height | 51.17 ft (15.6 m) |
| Maximum Digging Reach | 54.17 ft (16.5 m) |
| Maximum Digging Depth | 9.17 ft (2.8 m) |
| Maximum Digging Height | 52.83 ft (16.1 m) |
| Maximum Digging Reach | 62.33 ft (19 m) |
| Maximum Digging Depth | 29.17 ft (8.9 m) |
| Maximum Crowd Force | 494410 lb (2200 kN) |
| Maximum Breakout Force | 388780 lb (1730 kN) |
| Stick Digging Force - ISO | 295740 lb (1316 kN) |
| Bucket Digging Force - ISO | 274840 lb (1223 kN) |
| Face Shovel (heaped 2:1) | 44.5 yd³ (34 m³) |
| Backhoe (heaped 1:1) | 44.5 yd³ (34 m³) |
Benefits and Features
- Excellent visibility thanks to cab position that provides clear view to the digging and loading areas, floor window that provides a view to the tracks, LED lighting and standard Vision 360 camera monitoring system.
- Emergency egress ladder with a self-closing door located in direct proximity to the cab.
- Safer access with 45-degree powered access stairway that features emergency lowering via a nitrogen accumulator, which ensures it remains operational even when the machine shuts off.
- Safer electrical and/or mechanical maintenance thanks to lockable battery isolation switch.
- Safer service with improved sealing between motors and hydraulic pumps, improved routing and separation of hydraulic lines and electric cables.
- Improved operator comfort with Cat Next Gen heated and cooled seat and integrated joysticks.
- First-in-class and patented 3-seat design, including elevated full-size trainer’s seat and laptop work desk.
- New and improved air conditioning system.
- Reduced noise and better temperature control thanks to superior insulation.
- Productivity-boosting Operator Assist – Enhanced Motion Control, which reduces fatigue and helps inexperienced operators more confidently load material.
- Improved structures, including increased weight, strengthened superstructure and increased thickness in several locations.
- 33% longer service life for new and enlarged slew ring.
- New undercarriage with long-life components, frame and electronics.
- New crawler frame and Cat undercarriage with HD rollers, HD idlers, HD track, and track tensioning.
- High-performance Cat hoses can work more than 10,000 hours without a single leak.
- Proven, validated Cat electronics, with cutting-edge connectivity features and integrated Cat MineStar™ health offerings.
- Independent Oil Cooling system that protects and extends the life of hydraulic components by keeping oil at optimal temperature.
- Up to 5% greater efficiency through Hydraulic Optimization, which dynamically assigns individual pumps or groups of pumps to deliver the exact flow and pressure that each hydraulic function requires.
- Faster boom movement by using float valves instead of pumps to lower the boom.
- Faster cycle times and improved energy efficiency delivered by closed-loop swing system, which also generates less heat.
- Greater operator control thanks to five circuit hydraulics that allow for two cylinder motions, two travel motions, and swing to be controlled simultaneously.
- Easier and faster face shovel operation with unique TriPower face shovel design, which generates superior mechanical leverage and control.
- Increased productivity and greater uptime with twin motors, which enable up to 65% of full production with a single motor.
- Buckets and ground engaging tools (GET) designed to maximize durability and productivity and ideally matched to your shovel and application.
- Integrated to work as part of a machine system — helping you achieve high productivity and the lowest cost per ton.
- Variety of sizes and material densities for the ideal match to your shovel and application.
- Deliver optimal payload when combined with Cat GET and wear components.
- Wear packages that protect your investment, including special liner material and lip shroud, wing shrouds and heel shrouds.
- Greater connectivity with improved Product Link™ Elite system, which increases the availability of data provided by the 6060.
- Additional performance and reliability advantages through integration of proven and validated Cat electronics.
- Intuitive, informative onboard electronics that help operators be more productive.
- Enhanced diagnostic capabilities and troubleshooting functions with factory-installed Monitoring and Diagnostic System.
- Connectivity features and the integration of Cat MineStar™ Health offerings enable a proactive approach to maintenance.
- Ground-level service station provides easy access to everyday functions like hydraulic oil, slew gearbox oil, pump gearbox oil and grease. The service station also features an emergency shutoff and Cat battery charging connector.
- More room in the service compartment, plus easy access to slew gearboxes, rotary distributor, oil cooler and more.
- Clear arrangement of components on the superstructure for easy access and serviceability.
- Hose assemblies that can be built locally using all Cat material.
- Access to Cat Electronic Technician, which helps dealer service personnel more easily diagnose and prevent issues.
- Twin electric motors use power efficiently and produce zero direct carbon emissions.
- Less heat and improved efficiency with the closed-loop swing circuit.
- Reduced owning and operating costs thanks to increased commonality of systems and components, plus a reduction in unique part numbers.
- Preservation of raw materials, energy conservation and reduced emissions through the Cat Reman program, which returns end-of-life components to like-new condition.
Standard Equipment
- Pressurized high voltage switch cabinet: – Load break switch – Main, motor, and transformer fuses – Voltage and current transformers – Vacuum contactors for motor control – Ground fault detection – Auxiliary transformer
- Power factor correction
- Hydraulic Optimization
- Cat® Hydraulic Hose Assemblies
- Cat pump managing system with: – Electronic load limit control – Flow on demand – Automatic zero flow regulation – Automatic oil flow reduction – Reduced oil flow at high hydraulic oil temperature
- Pressure cut-off for main pumps
- Cooling of pump transmission gear oil
- Closed loop swing circuit
- Pressure testing points
- Full-flow high-pressure filters (100 μm), main pumps
- High pressure filters (200 μm), closed swing circuit
- Full-flow filters (10 μm), return circuit
- Pressure filters swing charge circuit (40 μm)
- Pressure filters pilot circuit (6 μm)
- Transmission oil filters (40 μm)
- Boom float valve (FS and BH)
- Stick float valve (FS only)
- 2 batteries
- Lockable 24 V system isolator switch
- Low voltage switch cabinet: – Motor Protection Relay (MPR) – 24 V and 400 V power supply – Active power converter – Phase sequence indication – Circuit breakers
- 13 LED high-brightness working flood lights
- 19 LED service lights
- 2 acoustic travel alarms – forward and reverse (power module, oil cooler module)
- 2 electric horns (1 cab module, 1 oil cooler module)
- HD tracks with cast double-grouser track pads
- 1400 mm (4 ft 7 in) wide track pads
- 1600 mm (5 ft 3 in) wide track pads
- HD fixed axle carrier and load rollers
- HD fixed axle idlers
- Automatic hydraulic retarder valve
- Hinged travel motor covers
- Hardened running surfaces of sprockets, idlers, rollers, pad links, teeth contact areas
- Fully hydraulic self-adjusting track tensioning system with piston accumulators
- Slip ring in undercarriage
- Cable guide with junction box at undercarriage
- Rectangular grease container (fill via service arm)
- Lubricated pinion in swing ring
- Grease filters (200 μm)
- Dual hydraulically driven HVAC system
- In-floor window with removable grate
- Pneumatically cushioned and multiadjustable comfort seat with: – Heating and cooling – Lumbar support – 2-point safety belt – Head and arm rests – Safety switch for automatic motion shutdown
- Independently adjustable seat consoles with integrated joysticks
- Electronic-Hydraulic Servo Control
- Elevated full-size trainer seat with 2-point safety belt and laptop desk
- Additional fold-away auxiliary seat with 2-point safety belt
- Three cup holders
- USB Charging
- FM/AM radio with USB and AUX input
- Parallel intermittent wiper/washer
- Roller blinds
- Monitoring system with 254 mm (10 in) color touchscreen
- 45° stairway from engine bay to operator cab
- Powered 45° access stairway
- Heated mirror on LH side
- Cat Vision 360 with 254 mm (10 in) HD color technology display
- Level indicators for length and crosswise inclination
- Document storage
- Service access holes from both sides in boom and stick (FS and BH)
- Boom and stick thermally stress relieved after welding
- Catwalks with rails at boom (FS and BH)
- Wear Package (as per bucket selection)
- Hydraulic oil exchange interval – 10,000 hours
- S·O·SSM ports
- Retractable ground-level service station with quick couplings for: – Pump transmission gear oil – left/right engines – Hydraulic oil – Grease – Swing transmission gear oil
- Cat battery charging connector
- Dirt wiper at swivel
- Cat Electronic Technician service port
- Indicator lights
- Cat Payload
- Cat Vision 360
- Operator Assist: Enhanced Motion Control
- Cat Product Link™ Elite
- Cat Minestar™ Solutions Ready
- Emergency stop switches: 2 in cab, 5 in power module, 1 at ground-level service station, 1 pull rope accessible from ground level
- Operator Protective Guard (Top Guard)
- All-round safety glass
- Emergency egress ladder
- Operator presence switch
- ISO or ANSI decals
Optional Equipment
- Electric Motor (6.6 kV – 50 Hz)
- Electric Motor (6.0 kV – 50 Hz)
- Electric Motor (7.2 kV – 60 Hz)
- TriPower Face Shovel kinematics: – Horizontal automatic constant-angle bucket guidance – Vertical automatic constant-angle bucket guidance – Automatic roll-back limiter to prevent material spillage – Kinematic assistance to hydraulic forces – Constant boom momentum throughout the whole lift arc – Crowd force assistance – Guards for shovel cylinders at FS stick
- Backhoe Attachment
- Cold Weather Package: – Hydraulic oil heater with thermostat – Hydraulic oil cooler bypass valves – Auxiliary preheating system for cab – Recommended for temperatures below –10° C (14° F)
- Cat Product Link Elite Dual Mode (Cellular and Satellite)
