HEAVY RENTAL EQUIPMENT

When you need functional, well-maintained heavy rental equipment for your jobsite, Western States Cat has you covered. We are committed to meeting your heavy equipment rental needs with flexible options designed to keep your business profitable and on schedule. Whether you need a machine for a week, a month or longer, we’re here to provide the rental equipment you need and the team to support your operation, exactly when you need it.

Our machines are routinely serviced, thoroughly inspected and ready to get to work on your jobsite. Browse our fleet offerings below, then fill out the form or give us a call at 866-990-0964 to reserve your equipment now.

HEAVY EQUIPMENT AVAILABLE FOR RENT

Excavators

Model	HP	Approx. Weight	Bucket	Max Reach/Depth	Configurations

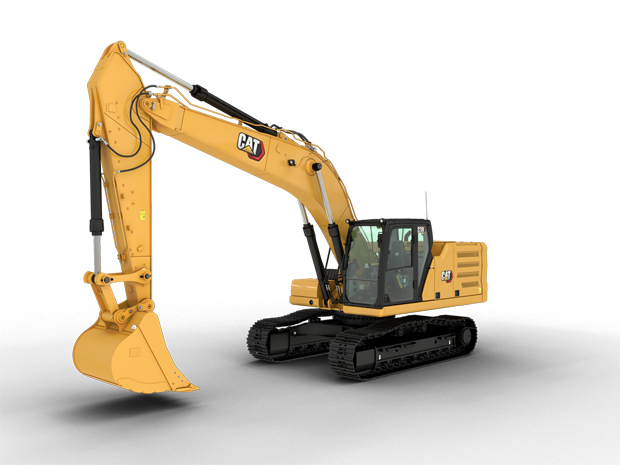

330 Long Reach	204	69,902	1 Yard Muck	60’ / 48’4”	Pin on Bucket
335	204	81,315	36″ – 60″	10’6” Stick 33’4” / 21’2”	Quick Coupler/Thumb
336	303	88,400	36″ – 72″	12’10” Stick 38’5” / 26’10”	Quick Coupler/Thumb
340	347	82,700	36″ – 72″	12’10” Stick 38’6” / 26’5”	Quick Coupler/Thumb
349	425	112,400	36″ – 80″	12’10” Stick 39’10” / 26’11”	Quick Coupler/Thumb
352	443	111,500	36″ – 80″	12’10” Stick 39’10” / 26’11”	Quick Coupler/Thumb
374	476	166,661	48″ – 90″	15’4” Stick 46’7” / 31’7”	Quick Coupler
390F	524	202,874	96″	11’2” Stick 48’8” / 28’6”	Pin on Bucket

Excavator attachments available:
36” Compaction Wheel for 336 Excavator
36” Compaction Wheel for 349 Excavator

Cat H-160 Hammer for 336 Excavator 8,000lb Hammer
Cat H-180 Hammer for 349 Excavator 10,000lb Hammer

MP 30 Multi-Processor for 349 Excavator
Concrete cutter
Shear Jaws

Bulldozers

Model	HP	Approx. Weight (lbs)	Blade	Configurations
D6N LGP	150	39,895	VPAT	Drawbar/ARO
D5 LGP	170	42,263	VPAT	Drawbar/ARO
D6T XL	202	52,167	VPAT/SU	Ripper(s)/ARO
D6T XW	202	53,170	VPAT/SU	Ripper(s)/ARO
D6T LGP	202	53,561	VPAT	Ripper(s)/ARO

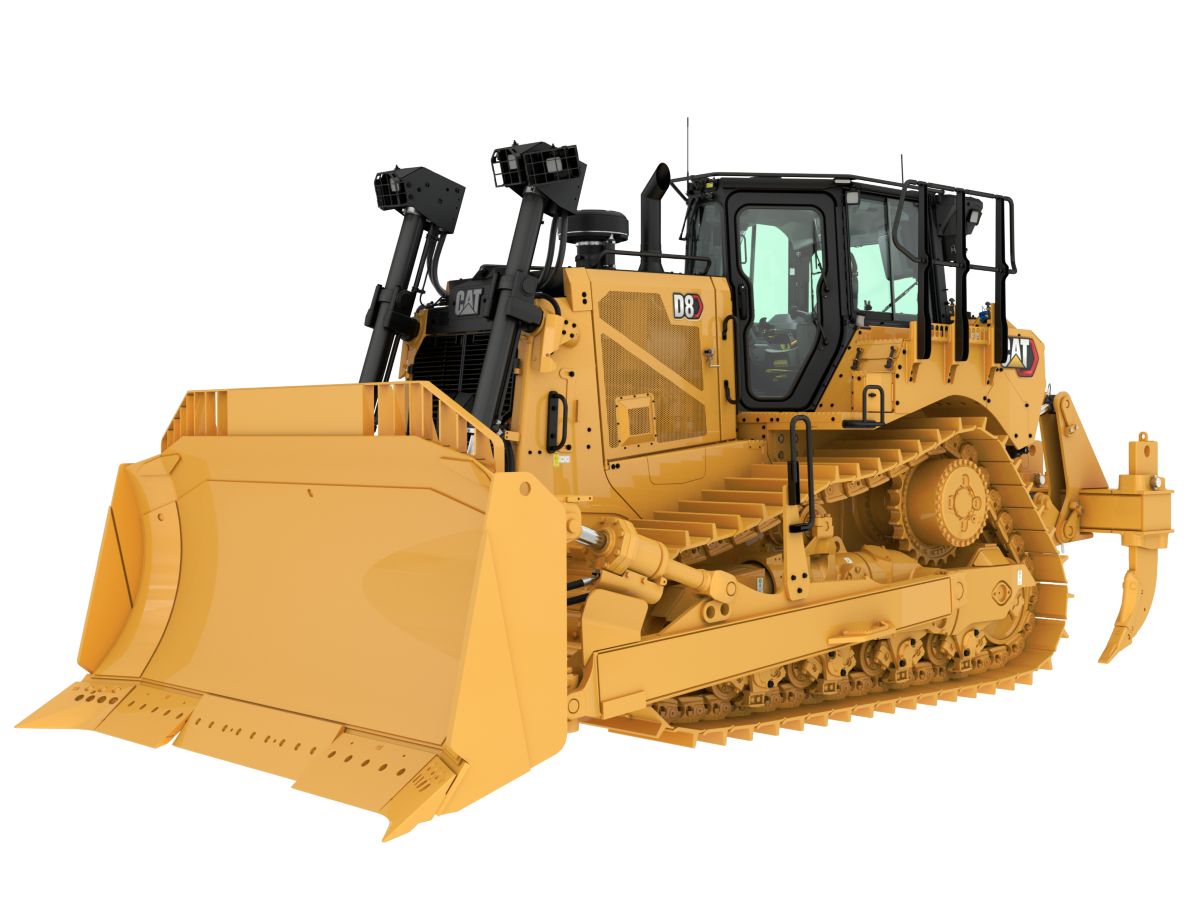

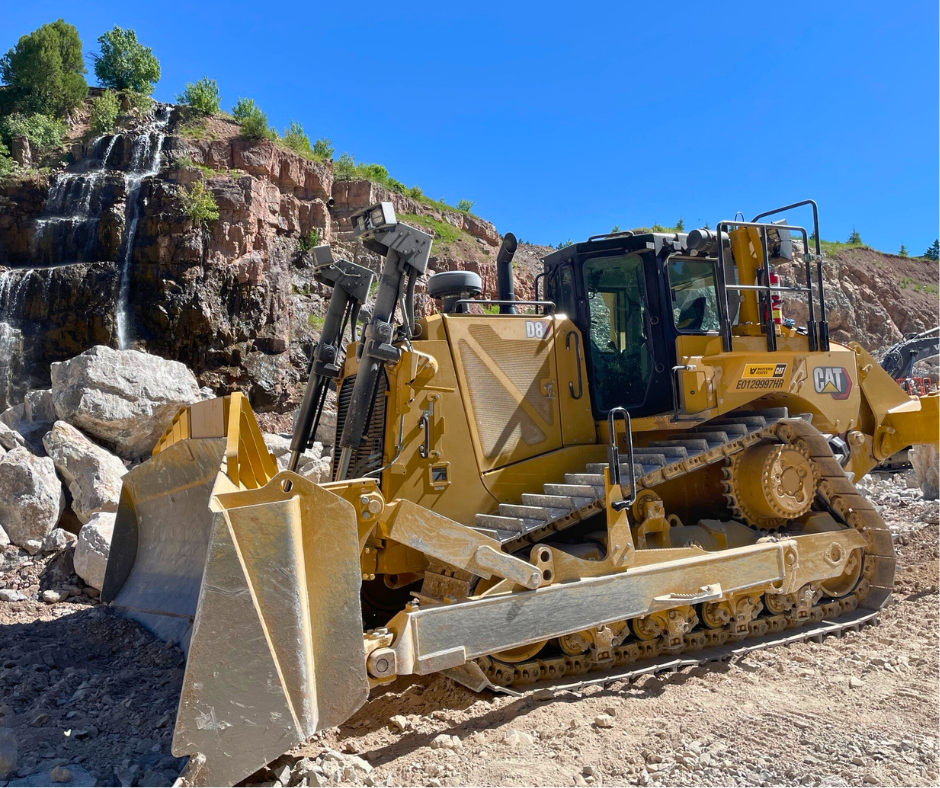

D8T	312	87,733	U	Ripper(s)/ARO
D9T	436	106,618	SU/U	Ripper(s)/ARO

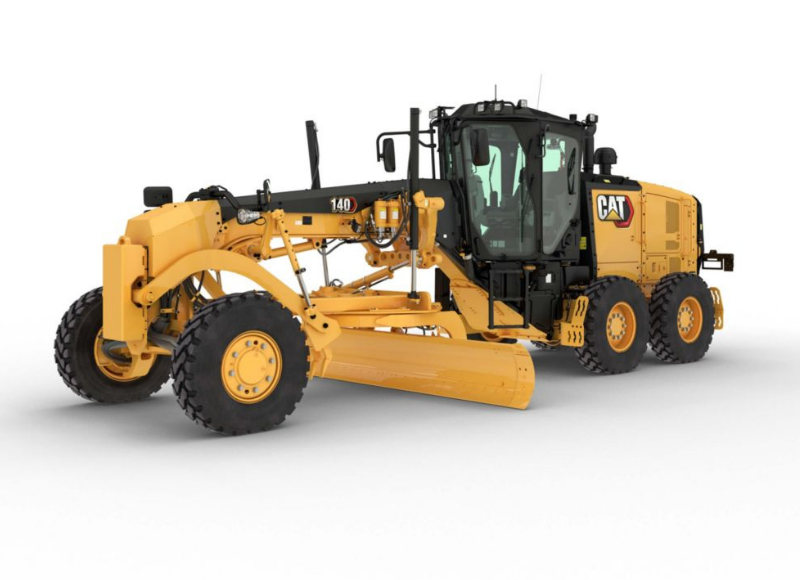

Motor Graders

Model	HP	Approx. Weight (lbs)	Blade Length (ft)	Configurations
14/14M3	238-285	57,250	16’	Ripper(s)/ARO
Standard Drive

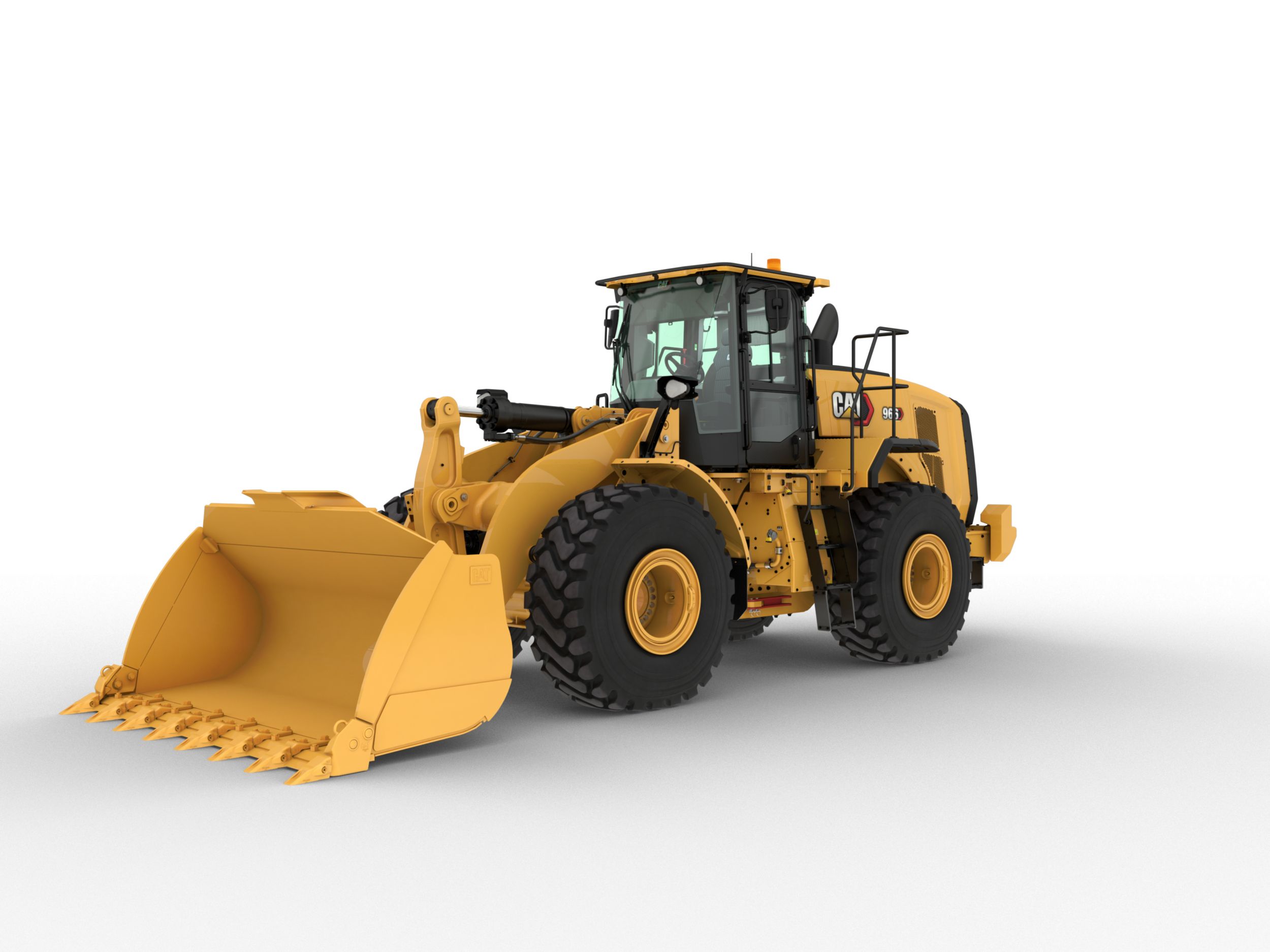

Wheel Loaders

Model	HP	Approx. Weight (lbs)	Bucket Capacity (yards)	Configurations
966M	311	52,161	5 – 6.25 Yard Bucket	Fusion Quick Coupler
972/972M	337	56,123	5.50 – 6.50 Yard Bucket	Fusion Quick Coupler
980/980M	425	66,623	7 – 8 Yard Bucket	Pin On Bucket
982	404	78,264	9.25 Yard Bucket	Pin On Bucket

6’ and 8’ pallet forks available for 966-972 only

Compactors

Asphalt Compactors

Model	HP	Approx. Weight (lbs)	Drum Width (in)
CB54 XW	137	26,230	79

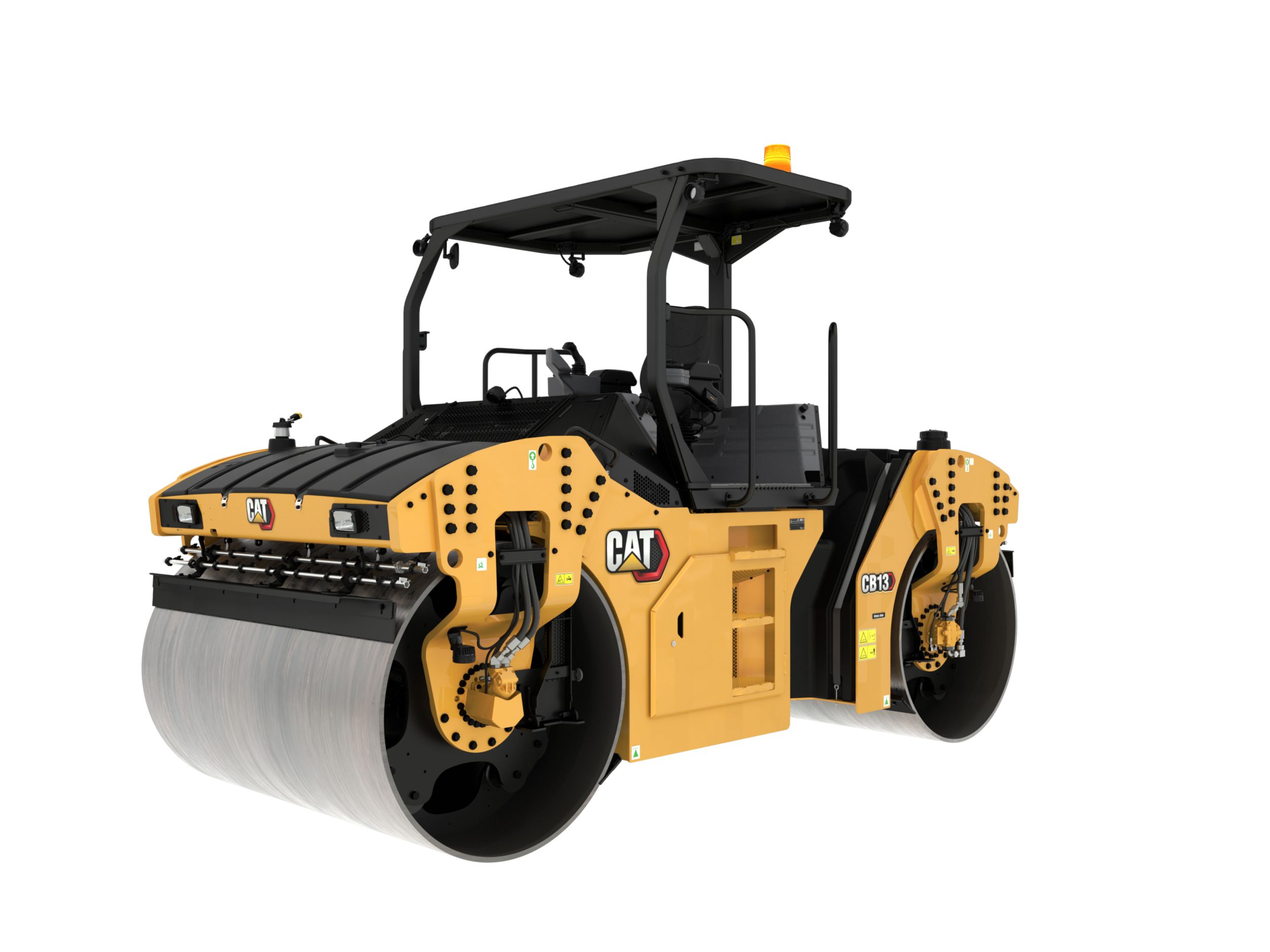

CB13	142	28,440	79
CB15	142	30,391	84
CB64	137	28,616	84
CB66	142	29,057	84
CB68B	142	31,162	84

Pneumatic Tired Compactors

Model	HP	Approx. Weight (lbs)	Compaction Width (in)
CW14	100.5	28,528	68
CW16	100.5	33,069	68

Soil Compactors

Model	HP	Approx. Weight (lbs)	Drum Width (in)
CP56B	157	25,707	84
CP68B	157	32,370	84
CP12	159	26,266	84
CS12	120	27,900	84
CS56B	157	25,346	84
CS68B	157	31,572	84
CS74B	173	35,264	84

Soil Compactors

Model	HP	Approx. Weight (lbs)	Blade Width (ft. in)

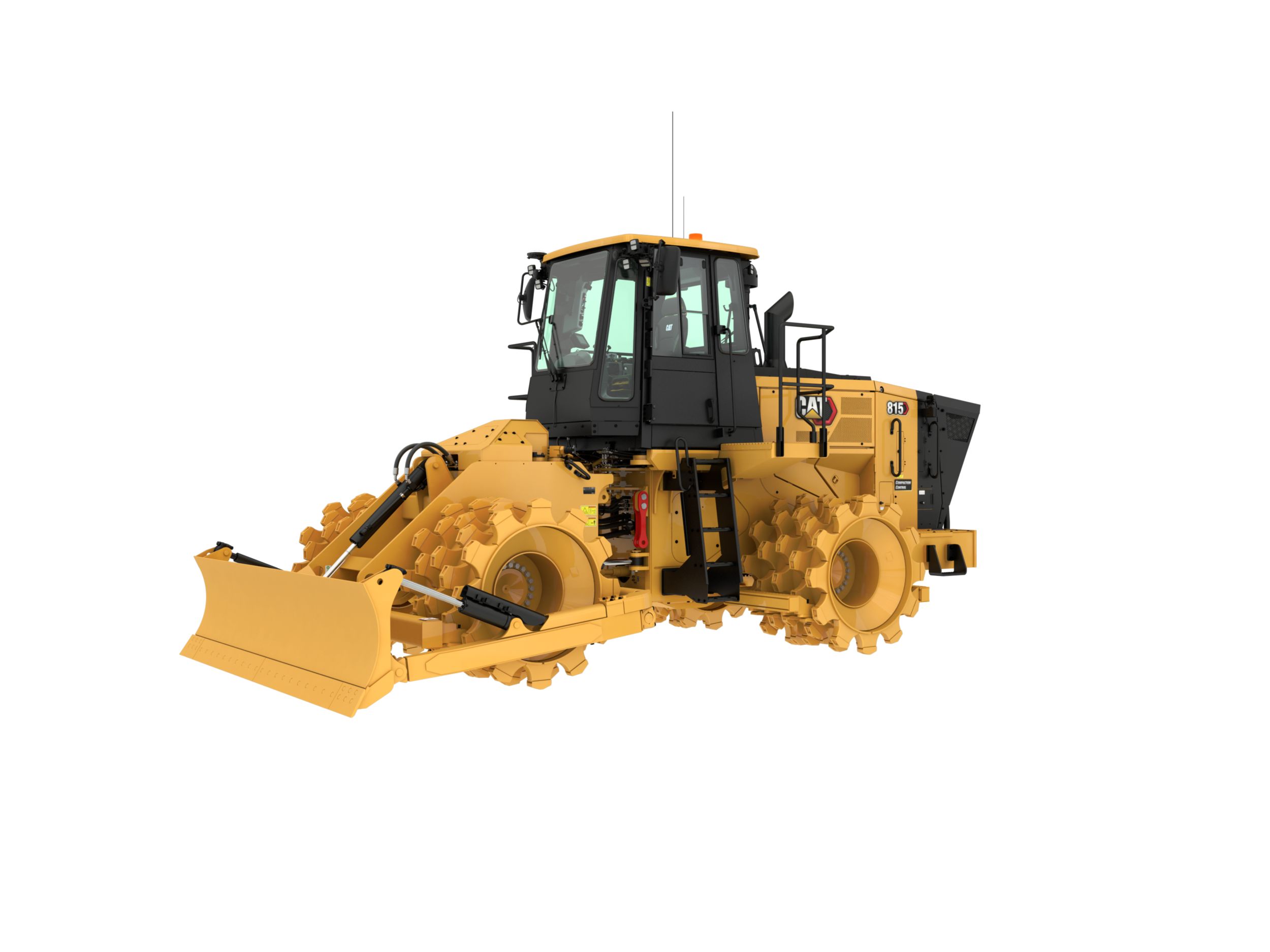

815F	253	45,765	12.4
815K	248	49,353	12.4

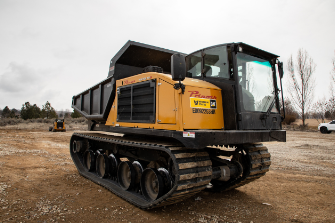

Articulated Trucks and Tracked Dump Trucks

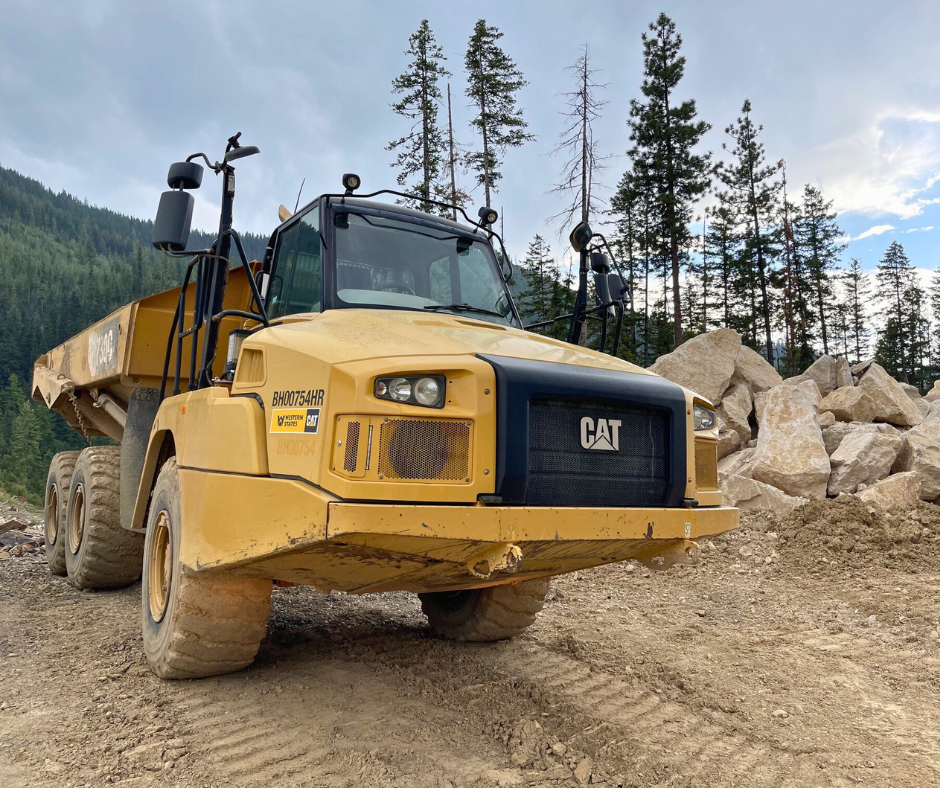

Articulated Trucks

Model	HP	Operating Weight (empty)	Capacity/Heaped (yds³)	Notes

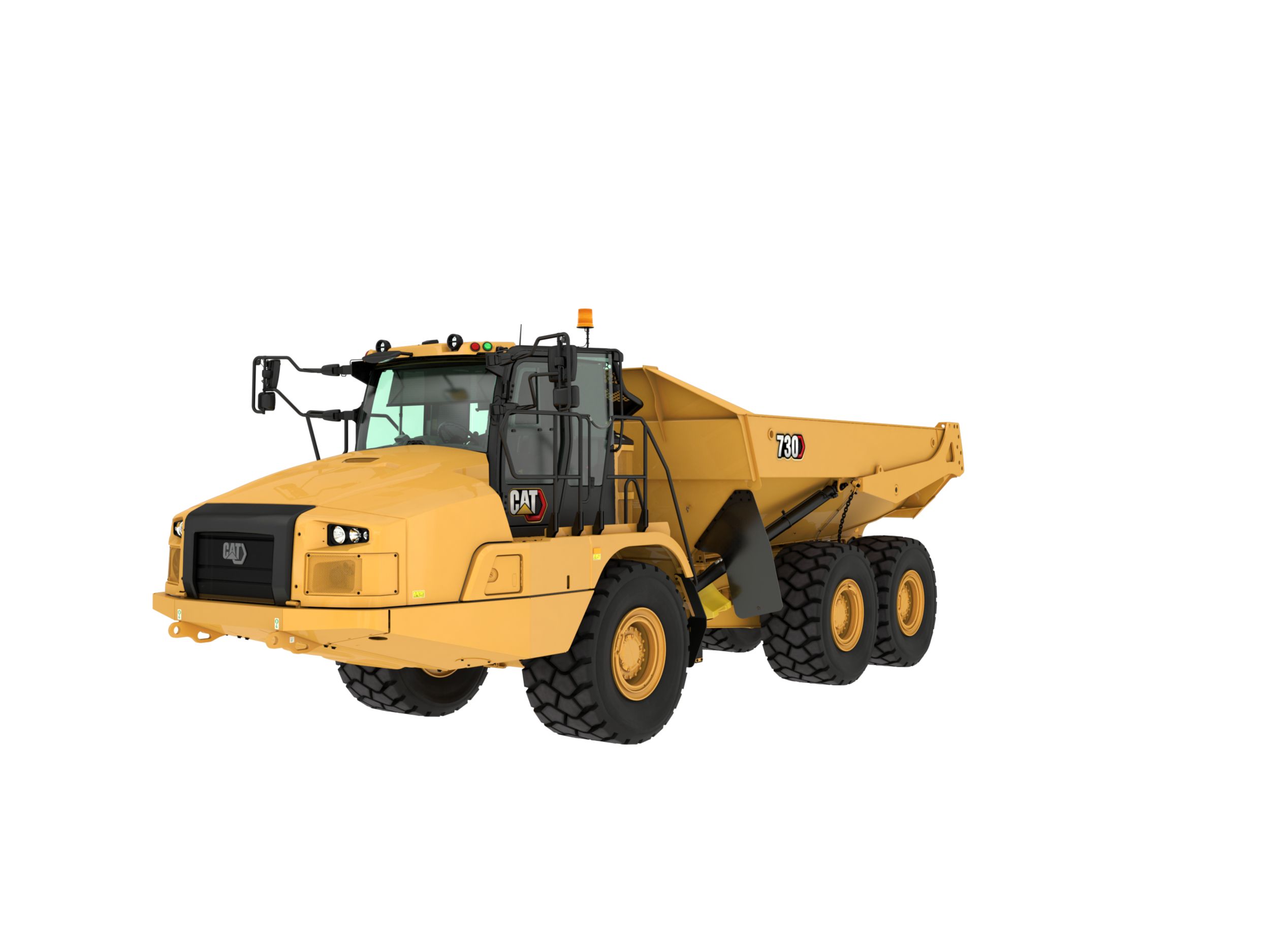

730	321	50,376 lbs	24	Tailgate
730C	370	53,131 lbs	24.6	Tailgate

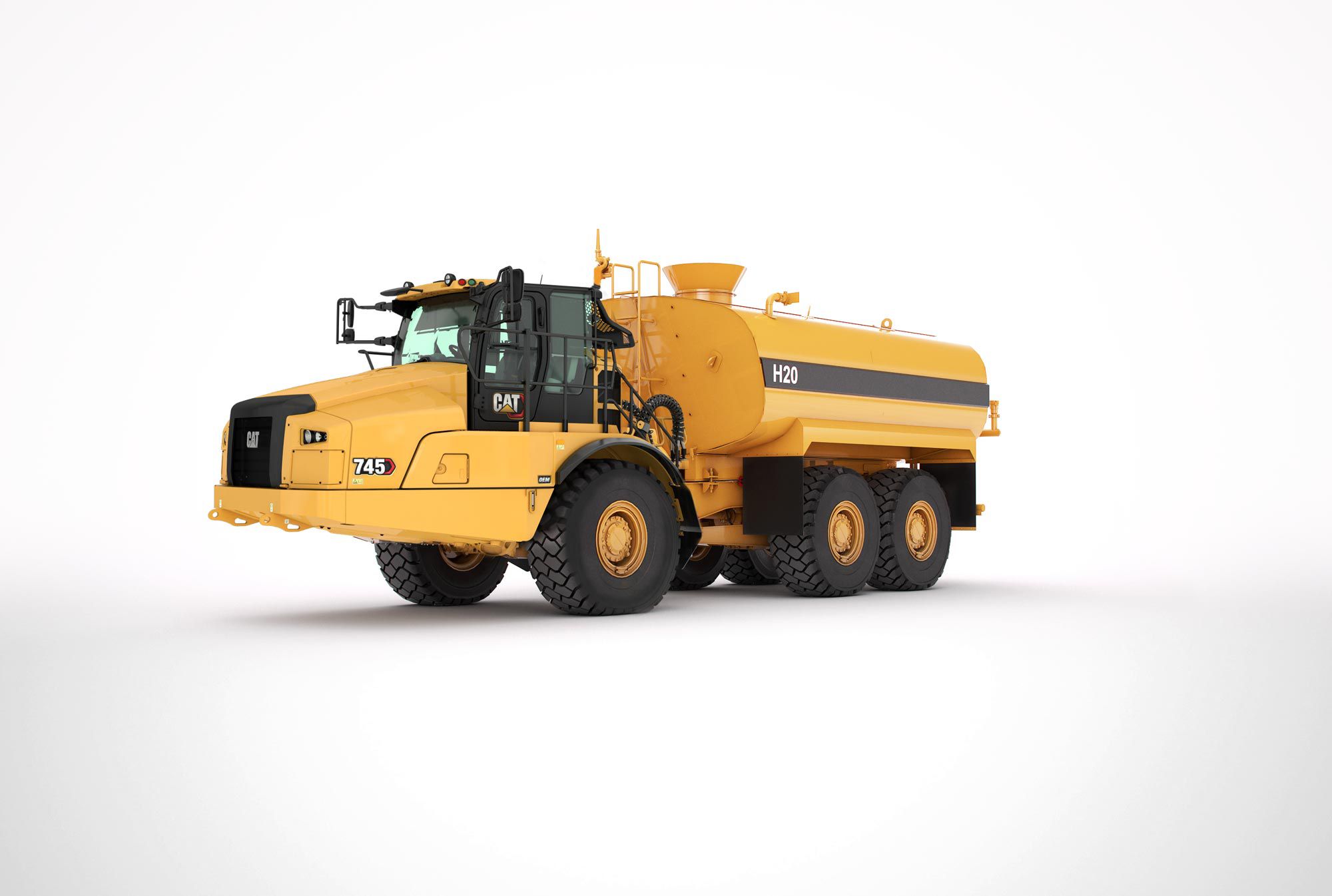

745	504	73,634 lbs	34.7	Tailgate
